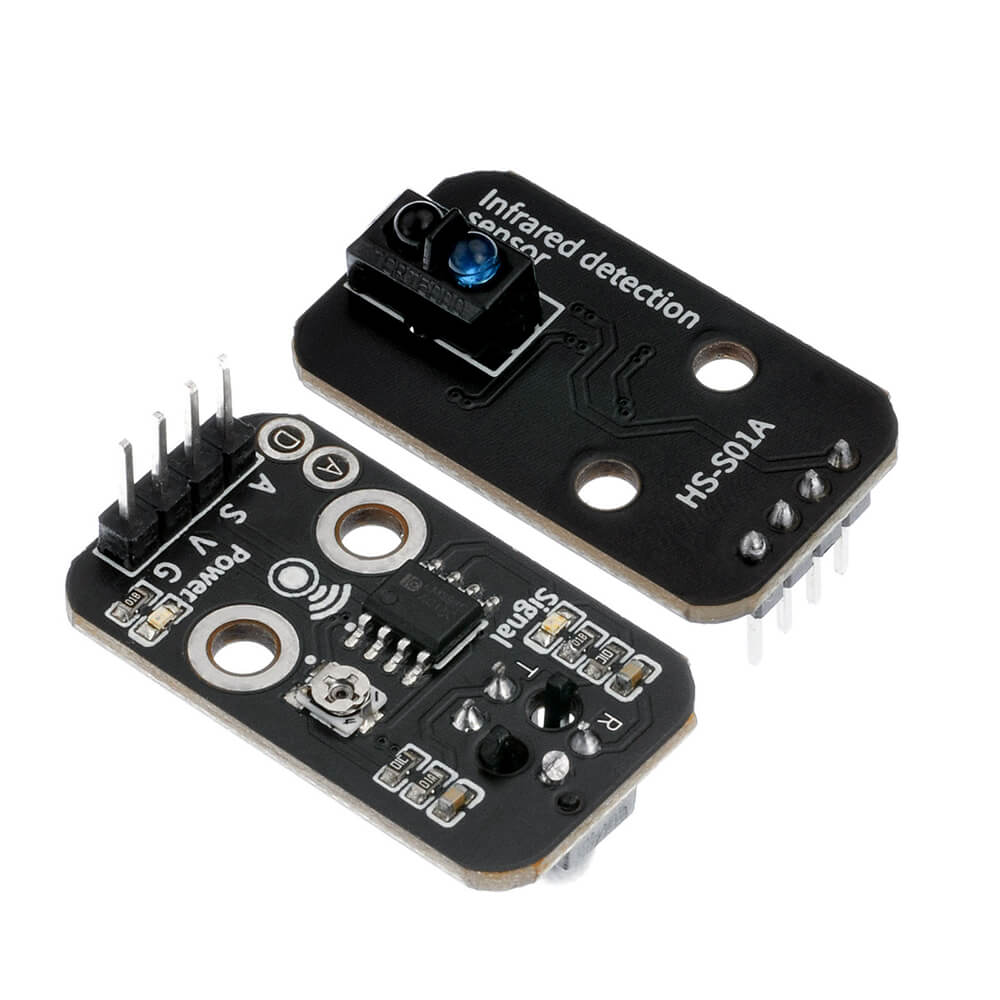

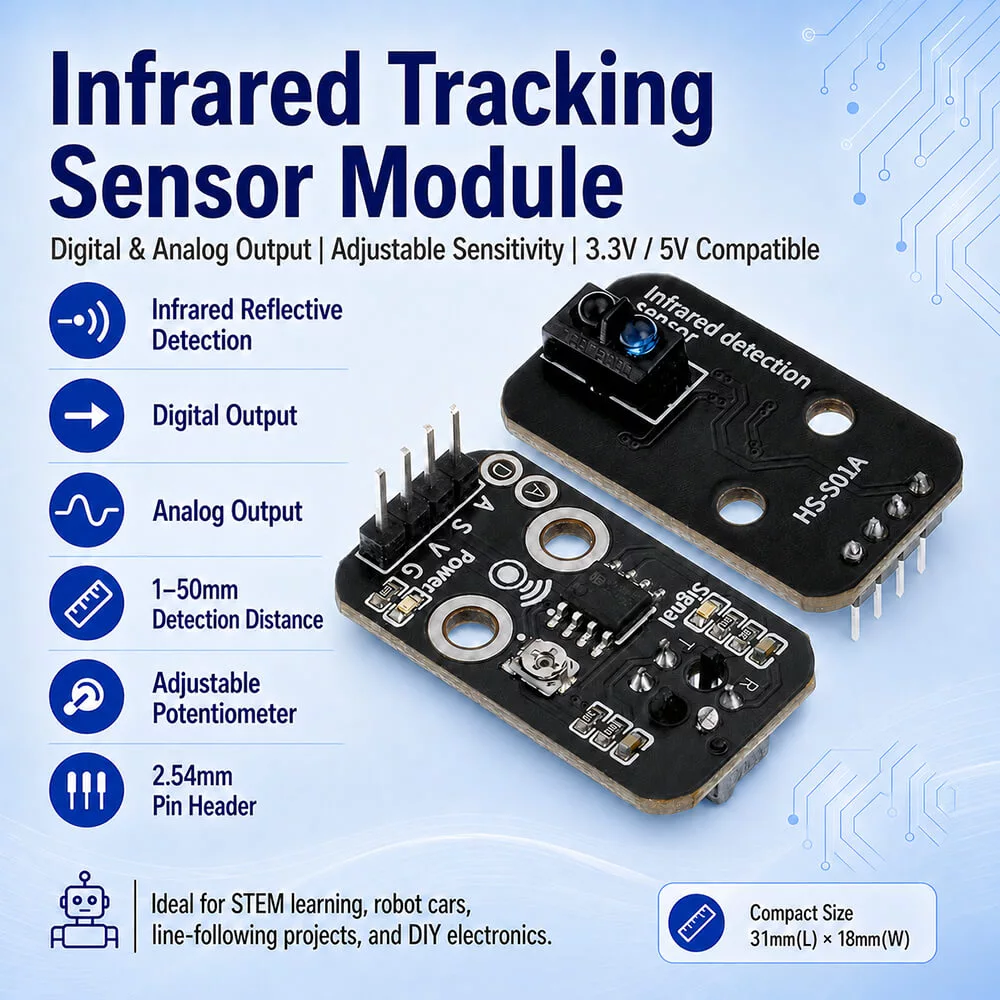

The Infrared Tracking Sensor Module is an infrared detection module designed for smart cars, line-following robots, and DIY electronics applications. The module integrates an infrared transmitter and receiver. When the emitted infrared light meets a reflective surface, the reflected signal is received and processed by the onboard circuit. The module can output a digital signal through the S pin, and it also provides an analog signal output through the A pin.

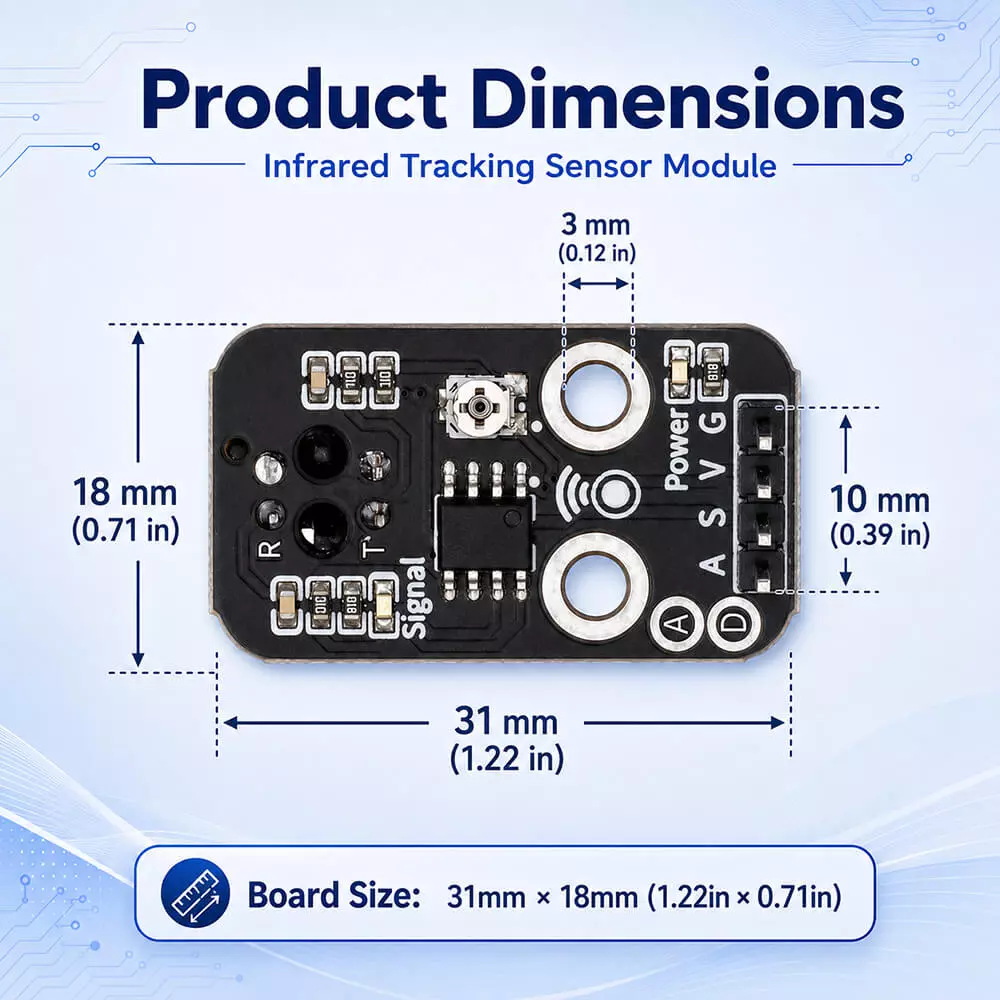

Technical Specifications
| Parameter | Specification |
| Product Name | Infrared Tracking Sensor Module |
| Model | HS-S01A |
| Sensor Type | Infrared reflective detection sensor |
| Main Function | Line tracking, reflective detection, and short-distance object detection |
| Working Voltage | 3.3V / 5V |
| Detection Distance | 1–50mm |
| Output Signal | Digital signal and analog signal |
| Digital Output Pin | S |
| Analog Output Pin | A |
| Power Pin | V / VCC |
| Ground Pin | G / GND |
| Interface Type | 2.54mm pin header |
| Sensitivity Adjustment | Potentiometer adjustable |
| Indicator | Blue LED indicator |
| Mounting Method | Dual screw fixing |
| Compatible Platforms | Arduino, STM32, ESP32, microcontroller projects, robot car kits |
Projects You Can Build

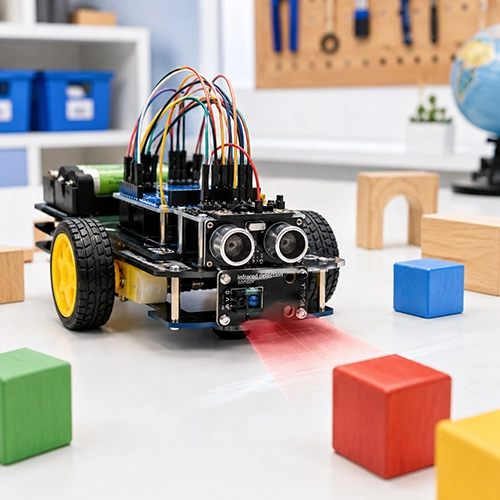

Arduino Line Following Robot: Use the infrared tracking sensor module to detect black and white lines on the ground. The sensor outputs signals to the Arduino controller, allowing the robot car to follow a preset track automatically.
Smart Car Edge Detection: Install the module at the bottom of a robot car to detect surface changes. It can help the car identify edges, lines, or reflective areas during movement.
Short-Distance Object Detection: The module can detect nearby reflective objects within a short range. It is suitable for simple object sensing experiments and microcontroller input testing.
STEM Infrared Sensor Experiment: Students can use this module to learn how infrared emission, reflection, reception, and signal output work in a practical electronics project.
